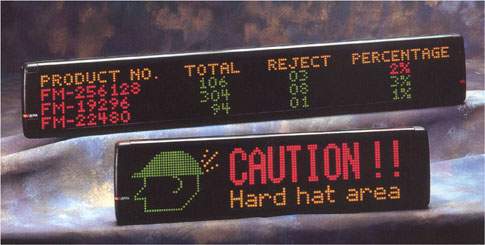

The ALPHA 7000 Series offers multi-line text messages of all types and is ideal for graphics & logos, too. Displays are available in four lengths and display one four lines of information in character sizes from 1.5” to 7.2”. The 7000 Series is designed to quickly display large amounts of information in three colors-red, green, and amber- for superb visual impact and higher resolution.
The ALPHA 7000 products are available in a variety of enclosures which have been designed to allow the products to be placed in the majority of industrial environments. Products are available to meet NEMA 2, NEMA 12, NEMA 4 and 4X standards.
Sizes |
7080 |
7120 |
7160 |
7200 |
| Case Dimensions: ( With power supply ) |
28.3"L x 5.6"D x 10"H (71.9 cmL x 14.2 cmD x 25.4 cmH ) |
40.3"L x 5.6"D x 10"H (102.4 cmL x 14.2 cmD x 25.4 cmH ) |
52.3"L x 5.6"D x 10"H (132.9 cmL x 14.2 cmD x 25.4 cmH ) |
64.3"L x 5.6"D x 10"H (163.3 cmL x 14.2 cmD x 25.4 cmH ) |
| Approximate Weight : | 15 lbs. (6.82 kg.) | 20 lbs. (9.09 kg.) | 26 lbs. (11.8 kg.) | 32 lbs. (14.5 kg.) |
| Display Dimensions : | 24"L x 7.2"H (60.9 cmL x 18.3 cmH) |
36"L x 7.2"H (91.4 cmL x 18.3 cmH) |
48"L x 7.2"H (121.9 cmL x 18.3 cmH) |
60"L x 7.2"H (152.4 cmL x 18.3 cmH) |
| Display Array | 80 x 24 pixels | 120 x 24 pixels | 160 x 24 pixels | 200 x 24 pixels |
| Characters Displayed One-line Two-line three-line four-line² |
min/typ/max 6/8/10 26/26/40 39/39/60 64/64/80 |
min/typ/max 10/12/15 40/40/60 60/60/90 96/96/120 |
min/typ/max 14/16/20 52/52/80 78/78/120 128/128/160 |
min/typ/max 18/20/25 66/66/100 99/99/150 160/160/200 |
| Text Memory | 50,000 | 50,000 | 50,000 | 50,000 |
| Graphic Memory | 40,000 | 40,000 | 40,000 | 40,000 |
