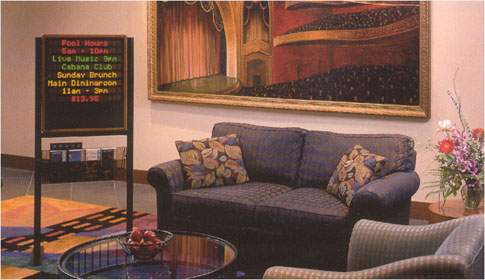

Encased in beautiful solid oak, the BETAbrite Director is designed for high-visibility indoor use in offices, lobbies, conference rooms, boardrooms, show-rooms,or any area that requires a sophisticated message center. Displays data in 3 vivid colors, perfect for these applications :
BetaBrite Director |
|||
| Case Dimensions: ( Wall mounted ) |
22.50"L x 3.12"D x 27"H (57.15 x 7.93 x 68.58 ) |
Memory Retention: | One mounth typical |
| Case Dimensions: ( Wiht optional brochure rack and stand) |
27"L x 18"D x 61"H (68.58 x 45.72 x 154.94 ) (Depht reflects floor stand feet) |
Message Capacity: | 26 different pages can be stored, scheduled, and displayed according to time and day of the week |
| Case Dimensions: (optional brochure rack ) |
22.50"L x 2.50"x 9.0" (57.15 cm x 6.35 cm x 22.86 cm) |
Message Operating Mode: | 37 lbs. 7 consisting of: Automode,Hold,Wipe (four directions), and flash (character or word) |
| Display weight: (w/out brouchure rack and stand) |
37 lbs. (16.783 kg.) |
Real-Time Clock: | Date and time, 12 or 24 hour format,maintains accurate time without power for up to 30 days typical |
| Display weight: ( with brichure rack and stand ) |
65 lbs. (29.484 kg.) |
Serial Computer Interface: | RS232 ( multi-drop networking for up to 255 displays) |
| Display weight: ( wall mount ) |
37 lbs. ( 16.783 kg. ) |
Power: | Internal Power Supply 120 VAC,60 Hz, 150 W ( 230 VAC, 50 Hz, 150 W also available ) |
| Display Dimension: | 19"L x 16.8"H ( 48.26 cm X 42.67 cm ) |
Maximun Power Card Length: | 6'7" ( 204.22 cm ) |
| Display Array: | 16 characters x 8 lines | Keyboard: | Handheld remote operated, infrared, 55 key layout |
| Pixel (LED) Color: | Tricolor ( red,green, and amber) | Case Material: | Solid Oak |
| Center-to-center Pixel Spacing ( Pitch): |
0.2"( 0.51 cm ) | Standard Package Includes:: | - BetaBrite® Director™ - Floor stand and brochure rack BetaBrite Messaging Software - 25 ft. RS232 Cable -IR Keyboard -Installation instructions. |
| Character Column Pitch: | 0.4"(1.02 cm) Space between characters | Limited Warranty: | One-year parts and labor, factory servicing |
| Character Row Pitch: | 1"(2.54 cm) Space between lines | Agency Approvals: | ETL ( Conforms to ANSI/UL Std. 1950) IEC 950, EN 60950, certified to CSA STD. C22.2#950 Complies with part 15 of the FCC rules |
| Character Size: | 1.4"tall x 1.0"wide (3.556 cm x 2.54 cm ) ( visible from 75 ft) |
Operating Temperature: | 32º to 95º F, 0º to 35ºC |
| Charcter Array: | 5"x 7"matrix (12.7 cm x 17.78 cm) | Humidity Range: | 0% to 95% non-condensing |
| Character Set: | Sana Serif upper/Lower case Small Sans Serif |
||
